nge::engine::ILevelNode Class Reference

#include <ILevelNode.hpp>

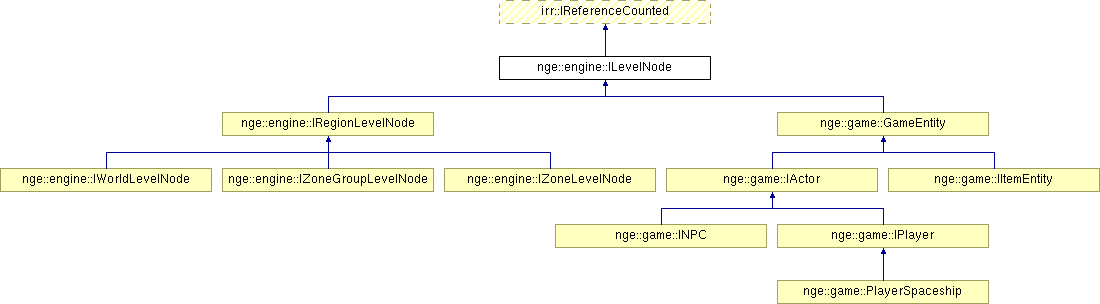

Inheritance diagram for nge::engine::ILevelNode:

List of all members.

Public Member Functions
virtual void	addChild (ILevelNode *child)
virtual ILevelNode *	clone (ILevelNode *newParent=0, ILevelManager *newManager=0)
	Creates a clone of this level node and its children.
virtual void	drawDebugData ()
	Draws the node's debug data based on its DebugDataVisible member.
list< ILevelNode * > &	getChildren ()
	Returns a const reference to the list of all children.
virtual s32	getID () const
	Returns the id of the level node. This id can be used to identify the node.
virtual const c8 *	getName () const
ILevelNode *	getParent () const
	Returns the parent of this level node.
virtual E_LEVEL_NODE_TYPE	getType () const
	Returns type of the level node.
	ILevelNode (ILevelNode *parent, ILevelManager *lmgr, s32 id=-1)
	Constructor.
E_DEBUG_LEVEL_TYPE	isDebugDataVisible () const
	Returns if debug data are drawed.
virtual bool	isIdle () const
	Returns true if the node is Idle.
virtual void	OnEvent (const NGEReceiver *event)
virtual void	OnRegisterLevelNode ()
	This method is called just before the processing of the node.
virtual void	process ()=0
	Process the node.
virtual void	remove ()
	Removes this level node from the level, deleting it.
virtual bool	removeChild (ILevelNode *child)
virtual void	removeChildren ()
	Removes all children of this level node.
virtual void	setDebugDataVisible (E_DEBUG_LEVEL_TYPE Visible)
	Sets if and which debug data should be drawn.
virtual void	setID (s32 id)
	Sets the id of the level node. This id can be used to identify the node.
virtual void	setIdle (bool isIdle)
	Sets if the node should be idle or not. All children of this node won't be processed too if this node is idle.
virtual void	setName (const c8 *name)
virtual void	setParent (ILevelNode *newParent)
	Changes the parent of the level node.
virtual	~ILevelNode ()
	Destructor.
Protected Member Functions
void	cloneMembers (ILevelNode *toCopyFrom, ILevelManager *newManager)
	This method should be used by clone() implementations of derived classes.
void	processEvent (const NGEReceiver *event)
Protected Attributes
list< ILevelNode * >	Children
	List of all children of this node.
E_DEBUG_LEVEL_TYPE	DebugDataVisible
	Flag if debug data should be drawn.
s32	ID
	Id of the node.
bool	IsIdle
	Is the node Idle?
ILevelManager *	LevelManager
	Pointer to the level manager.
stringc	Name
	Name of the level node.
ILevelNode *	Parent
	Pointer to the parent.

---

Detailed Description

Definition at line 18 of file ILevelNode.hpp.

---

Constructor & Destructor Documentation

nge::engine::ILevelNode::ILevelNode	(	ILevelNode *	parent,
		ILevelManager *	lmgr,
		s32	id = -1
	)			[inline]

Constructor.

Definition at line 22 of file ILevelNode.hpp.

References addChild(), and Parent.

virtual nge::engine::ILevelNode::~ILevelNode

(

)

[inline, virtual]

Destructor.

Definition at line 32 of file ILevelNode.hpp.

References removeChildren().

---

Member Function Documentation

virtual void nge::engine::ILevelNode::addChild

(

ILevelNode *

child

)

[inline, virtual]

Adds a child to this level node. If the level node already has got a parent, it is removed from there as child.

Definition at line 129 of file ILevelNode.hpp.

References Children, irr::IReferenceCounted::grab(), Parent, and remove().

Referenced by ILevelNode(), and setParent().

virtual ILevelNode* nge::engine::ILevelNode::clone	(	ILevelNode *	newParent = 0,
		ILevelManager *	newManager = 0
	)			[inline, virtual]

Creates a clone of this level node and its children.

Definition at line 234 of file ILevelNode.hpp.

void nge::engine::ILevelNode::cloneMembers	(	ILevelNode *	toCopyFrom,
		ILevelManager *	newManager
	)			[inline, protected]

This method should be used by clone() implementations of derived classes.

Definition at line 241 of file ILevelNode.hpp.

References Children, DebugDataVisible, ID, IsIdle, LevelManager, and Name.

virtual void nge::engine::ILevelNode::drawDebugData

(

)

[inline, virtual]

Draws the node's debug data based on its DebugDataVisible member.

Reimplemented in nge::engine::IRegionLevelNode.

Definition at line 70 of file ILevelNode.hpp.

References Children.

Referenced by nge::engine::IRegionLevelNode::drawDebugData().

list<ILevelNode*>& nge::engine::ILevelNode::getChildren

(

)

[inline]

Returns a const reference to the list of all children.

Definition at line 196 of file ILevelNode.hpp.

References Children.

Referenced by nge::engine::IRegionLevelNode::setIdle().

virtual s32 nge::engine::ILevelNode::getID

(

)

const [inline, virtual]

Returns the id of the level node. This id can be used to identify the node.

Definition at line 114 of file ILevelNode.hpp.

References ID.

Referenced by nge::engine::IRegionLevelNode::drawDebugData().

virtual const c8* nge::engine::ILevelNode::getName

(

)

const [inline, virtual]

Returns the name of the node.

Returns:

Returns name as character string.

Definition at line 84 of file ILevelNode.hpp.

References Name.

Referenced by nge::engine::IRegionLevelNode::drawDebugData().

ILevelNode* nge::engine::ILevelNode::getParent

(

)

const [inline]

Returns the parent of this level node.

Definition at line 220 of file ILevelNode.hpp.

References Parent.

virtual E_LEVEL_NODE_TYPE nge::engine::ILevelNode::getType

(

)

const [inline, virtual]

Returns type of the level node.

Reimplemented in nge::game::GameEntity, nge::game::IPlayer, and nge::engine::IRegionLevelNode.

Definition at line 227 of file ILevelNode.hpp.

References nge::engine::ELNT_UNKNOWN.

E_DEBUG_LEVEL_TYPE nge::engine::ILevelNode::isDebugDataVisible

(

)

const [inline]

Returns if debug data are drawed.

Definition at line 189 of file ILevelNode.hpp.

References DebugDataVisible.

virtual bool nge::engine::ILevelNode::isIdle

(

)

const [inline, virtual]

Returns true if the node is Idle.

Definition at line 99 of file ILevelNode.hpp.

References IsIdle.

Referenced by nge::engine::IRegionLevelNode::drawDebugData(), and nge::engine::IRegionLevelNode::OnRegisterLevelNode().

virtual void nge::engine::ILevelNode::OnEvent

(

const NGEReceiver *

event

)

[inline, virtual]

Reimplemented in nge::game::GameEntity.

Definition at line 64 of file ILevelNode.hpp.

virtual void nge::engine::ILevelNode::OnRegisterLevelNode

(

)

[inline, virtual]

This method is called just before the processing of the node.

Nodes may register themselves in the process pipeline during this call, precalculate everything that should be processed, and prevent their children from being able to register themselves if they are idle by simply not calling their OnRegisterLevelNode() method. If you are implementing your own level node, you should override this method with an implementtion code looking like this:

                        if(!IsIdle)
                        LevelManager->registerNodeForProcessing(this, pass);

                        ILevelNode::OnRegisterLevelNode();

Reimplemented in nge::game::GameEntity, nge::game::IPlayer, and nge::engine::IRegionLevelNode.

Definition at line 53 of file ILevelNode.hpp.

References Children, and IsIdle.

Referenced by nge::engine::IRegionLevelNode::OnRegisterLevelNode().

virtual void nge::engine::ILevelNode::process

(

)

[pure virtual]

Process the node.

Implemented in nge::game::GameEntity, and nge::game::PlayerSpaceship.

void nge::engine::ILevelNode::processEvent

(

const NGEReceiver *

event

)

[inline, protected]

Definition at line 260 of file ILevelNode.hpp.

References Children.

virtual void nge::engine::ILevelNode::remove

(

)

[inline, virtual]

Removes this level node from the level, deleting it.

Definition at line 174 of file ILevelNode.hpp.

References Parent, and removeChild().

Referenced by addChild().

virtual bool nge::engine::ILevelNode::removeChild

(

ILevelNode *

child

)

[inline, virtual]

Removes a child from this level node.

Returns:

Returns true if the child could be removed, and false if not.

Definition at line 143 of file ILevelNode.hpp.

References Children.

Referenced by remove().

virtual void nge::engine::ILevelNode::removeChildren

(

)

[inline, virtual]

Removes all children of this level node.

Definition at line 160 of file ILevelNode.hpp.

References Children.

Referenced by ~ILevelNode().

virtual void nge::engine::ILevelNode::setDebugDataVisible

(

E_DEBUG_LEVEL_TYPE

Visible

)

[inline, virtual]

Sets if and which debug data should be drawn.

Definition at line 182 of file ILevelNode.hpp.

References DebugDataVisible.

virtual void nge::engine::ILevelNode::setID

(

s32

id

)

[inline, virtual]

Sets the id of the level node. This id can be used to identify the node.

Definition at line 121 of file ILevelNode.hpp.

References ID.

virtual void nge::engine::ILevelNode::setIdle

(

bool

isIdle

)

[inline, virtual]

Sets if the node should be idle or not. All children of this node won't be processed too if this node is idle.

Reimplemented in nge::engine::IRegionLevelNode.

Definition at line 107 of file ILevelNode.hpp.

References IsIdle.

Referenced by nge::engine::IRegionLevelNode::setIdle().

virtual void nge::engine::ILevelNode::setName

(

const c8 *

name

)

[inline, virtual]

Sets the name of the node.

Parameters:

name,:

New name of the level node.

Definition at line 92 of file ILevelNode.hpp.

References Name.

virtual void nge::engine::ILevelNode::setParent

(

ILevelNode *

newParent

)

[inline, virtual]

Changes the parent of the level node.

Definition at line 203 of file ILevelNode.hpp.

References addChild(), irr::IReferenceCounted::drop(), irr::IReferenceCounted::grab(), and Parent.

---

Member Data Documentation

list<ILevelNode*> nge::engine::ILevelNode::Children [protected]

List of all children of this node.

Definition at line 280 of file ILevelNode.hpp.

Referenced by addChild(), cloneMembers(), drawDebugData(), getChildren(), OnRegisterLevelNode(), processEvent(), removeChild(), removeChildren(), and nge::engine::IRegionLevelNode::setIdle().

E_DEBUG_LEVEL_TYPE nge::engine::ILevelNode::DebugDataVisible [protected]

Flag if debug data should be drawn.

Definition at line 292 of file ILevelNode.hpp.

Referenced by cloneMembers(), nge::engine::IRegionLevelNode::drawDebugData(), isDebugDataVisible(), and setDebugDataVisible().

s32 nge::engine::ILevelNode::ID [protected]

Id of the node.

Definition at line 283 of file ILevelNode.hpp.

Referenced by cloneMembers(), getID(), and setID().

bool nge::engine::ILevelNode::IsIdle [protected]

Is the node Idle?

Definition at line 289 of file ILevelNode.hpp.

Referenced by cloneMembers(), isIdle(), OnRegisterLevelNode(), and setIdle().

ILevelManager* nge::engine::ILevelNode::LevelManager [protected]

Pointer to the level manager.

Definition at line 286 of file ILevelNode.hpp.

Referenced by nge::engine::IRegionLevelNode::addGridSceneNode(), nge::engine::IRegionLevelNode::addNUSoftwareIntroSceneNode(), nge::engine::IRegionLevelNode::addSoundEmitterSceneNode(), cloneMembers(), and nge::engine::IRegionLevelNode::drawDebugData().

stringc nge::engine::ILevelNode::Name [protected]

Name of the level node.

Definition at line 274 of file ILevelNode.hpp.

Referenced by cloneMembers(), getName(), and setName().

ILevelNode* nge::engine::ILevelNode::Parent [protected]

Pointer to the parent.

Definition at line 277 of file ILevelNode.hpp.

Referenced by addChild(), getParent(), ILevelNode(), remove(), setParent(), and nge::engine::IRegionLevelNode::~IRegionLevelNode().

---

The documentation for this class was generated from the following file:

• ILevelNode.hpp
